You are here: Home » News » Customer Cases » Wet/Aqua Blasting Machine to Restore Motorcycle Engine Parts

Wet/Aqua Blasting Machine to Restore Motorcycle Engine Parts

vapor blasting motorcycle parts

Product: Wet blasting cabinet

Customer Location: Australia

Application: Restoring Motorcycle Parts

The Australian Customer odered the wet blasting cabinet from Kafan to restore their motorcycle engine parts, they really got excellent results with amazing efficiency. It takes only 7 minutes to remove the years of corrosion rust and grime, after the process, they looks better than new! Comparing with their old aqua blaster that takes one hour to the cylinder, our machine offers great efficiency and experience.

Why choose wet blasting for motorcycle parts?

With wet blasting you can clean and restore the old parts with one simple step in record time thanks to the flow based topography following nature of the wet slurry.

It also creates a dustless process. As the flushing action of the water, three is no media impregnation into the parts, and features dustfree when removing impurities.

More importanty, no other process compares when it comes to not only clean but protect history itself.  As dry blasting will remove precious marks and traits on engine and other components which is valuable to the restoration,  however wet blasting will simply strip the covered corrosion and grime top of these marks without damage.

231107-1212W-卡菲自制2
231107-1212W-卡菲自制7


What is a wet blasting machine? How it works?

Wet blasting, also known as aqua blasting or liquid honing, is the initial choice for applications requiring the highest quality of surface finish. Vapor blasting machine works by using a specially pump that agitates water and media into a slurry mixture and delivers it to the blast nozzle, while compressed air is introduced to accelerate the slurry and creates the cleaning effect. The flushing action of the water-based flow makes it cleaning and washing at the same.

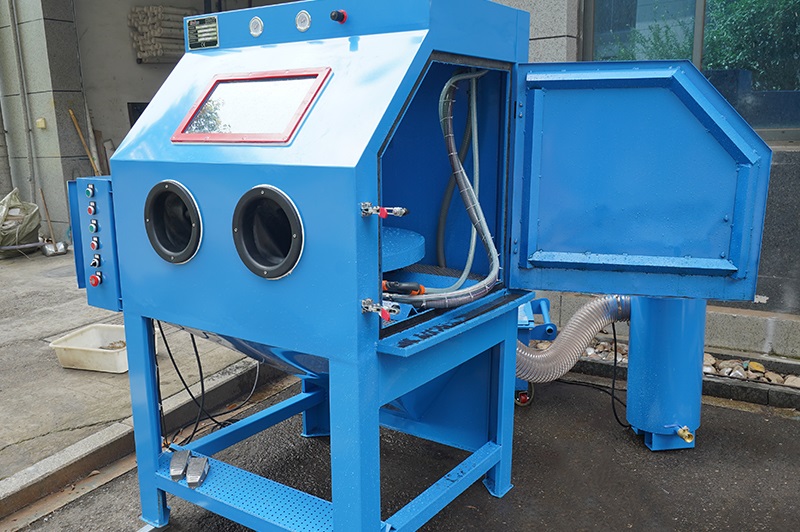

Wet Blasting Machine Configurations & Features

  • Made of 3mm thick stainless steel with powder-coated surface, rigid, anti-rust and lifelong.

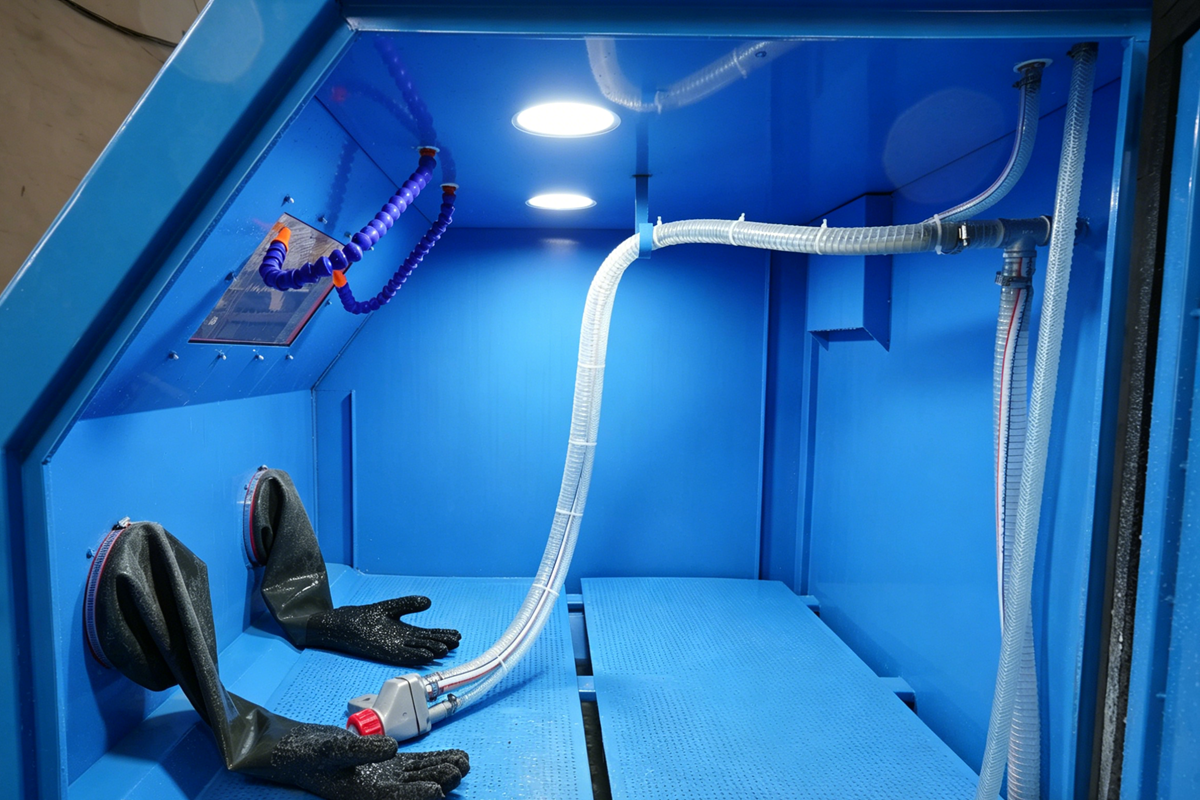

  • Equipped with windscreen wiper and washer facility to maintain visibility throughout the cabinet.

  • Durable wet blasting gun with 8mm boron carbide nozzles specially for wet blasting process,

  • Reliable foot pedal controls the working of blast gun to increase operation safety.

  • A demister at the back of the vapor blaster is for better view of blasting process.

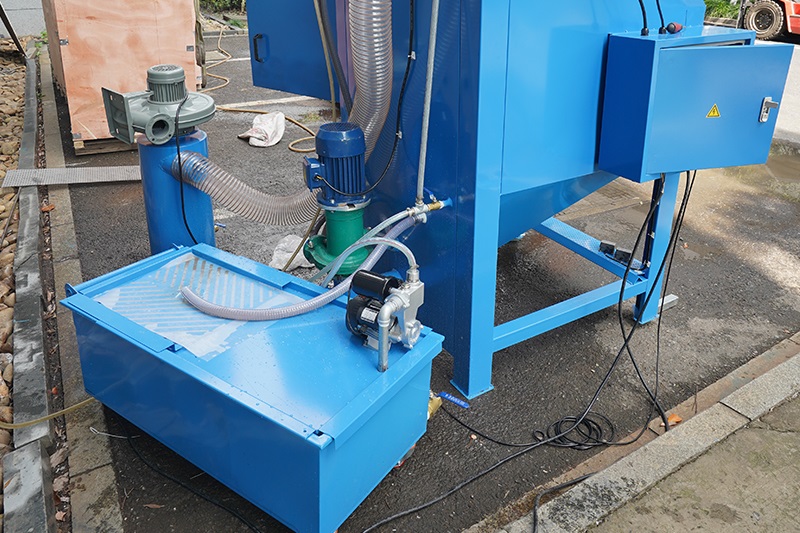

  • Can be optionally configured with a water recirculating tank interconnected to the slurry hopper for a closed loop system

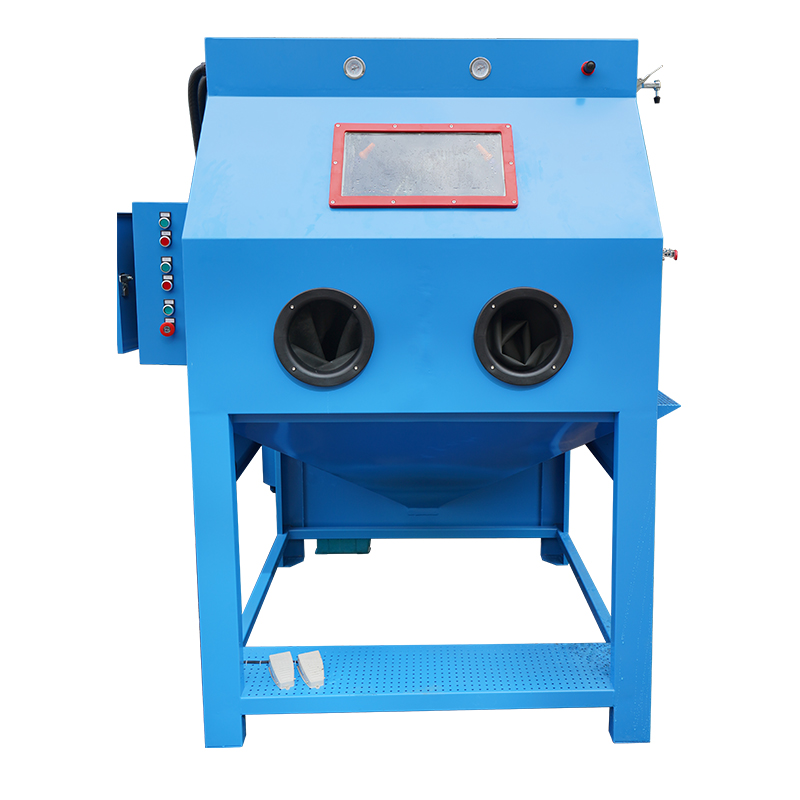

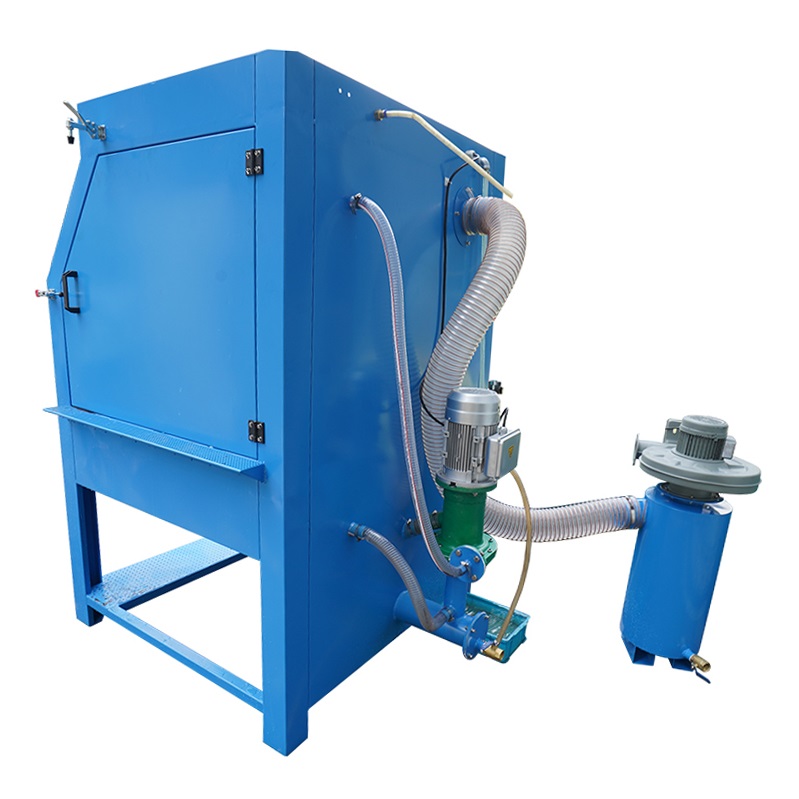

KF-1212W Wet Abrasive Blasting Cabinet Specifications

Model KF-1212W
Outer size 1300*1600*2000mm
Working area 1200*1200*800mm
Motor 2.2Kw
Air requirement flow 0.5-1.1m^3/min
Light 2*18w saving lamps
Blast Gun 1 pc of wet blast gun with 1 boron cabide nozzle (8mm)
Air consumption for 1 gun 0.4-0.8Mbar
Volume of abrasive & water 25L
Suitable abrasive

Glass beads(for aluminum, stainless steel)

Brown Aluminum Oxide(stell or other)80#-320#

Feed abrasive 4-6kg
Abrasive : Water 1:3
Voltage 380V/220V 3 phase (customized)
