Automatic Sandblasting Machine for Paint Removal

Product: Automatic conveyor sandblasting machine

Customer Location: Algeria

Application: removing paint of steel plates

This automatic conveyor sandblasting machine is purchased by our customer from Algeria for their steel parts of removing old paints, in order to refurbishing with new colors.

Belt conveyor blasting machine allows a batch of workparts continuously pass thru the processing chamber for automatic media blasting, which ahieves high producrion and unifom processing quality. As it is a pass through system, it does not limits the length of workparts.

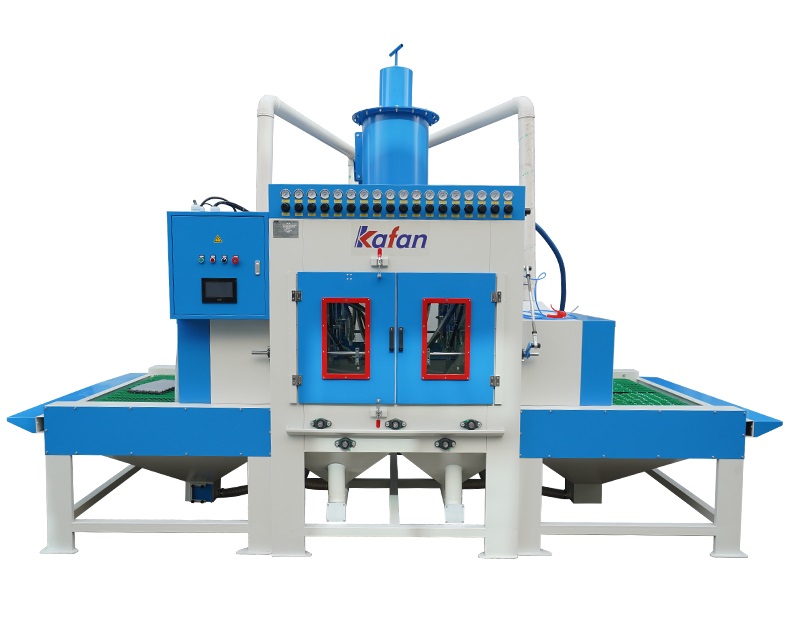

Automatic Sandblasting Work Cabin

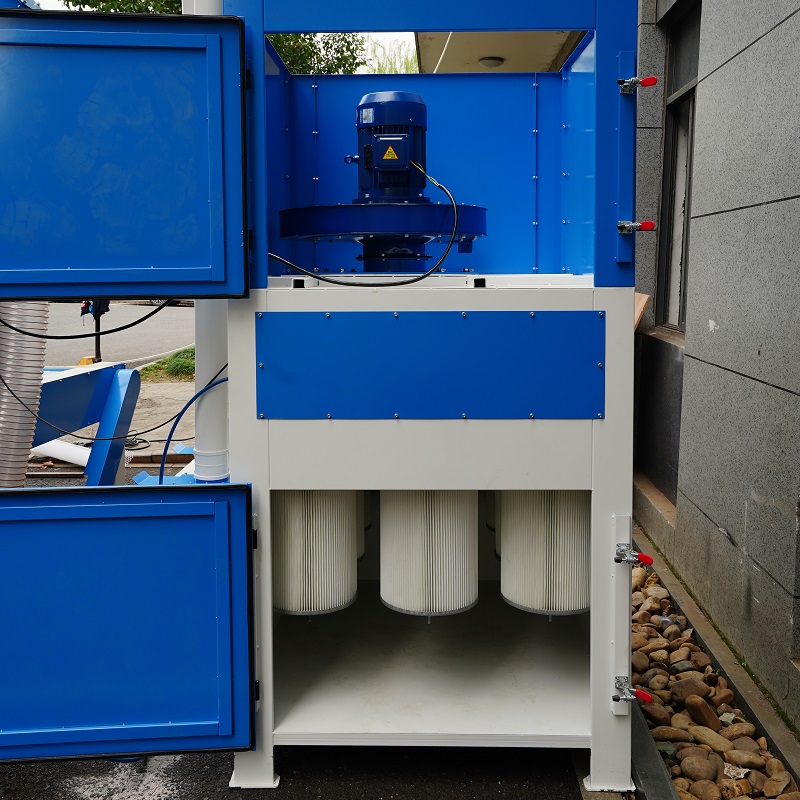

Sandblasting Machine Dust Collector

Sandblasting Machine for Paint Removal

How automatic conveyor blasting machine works?

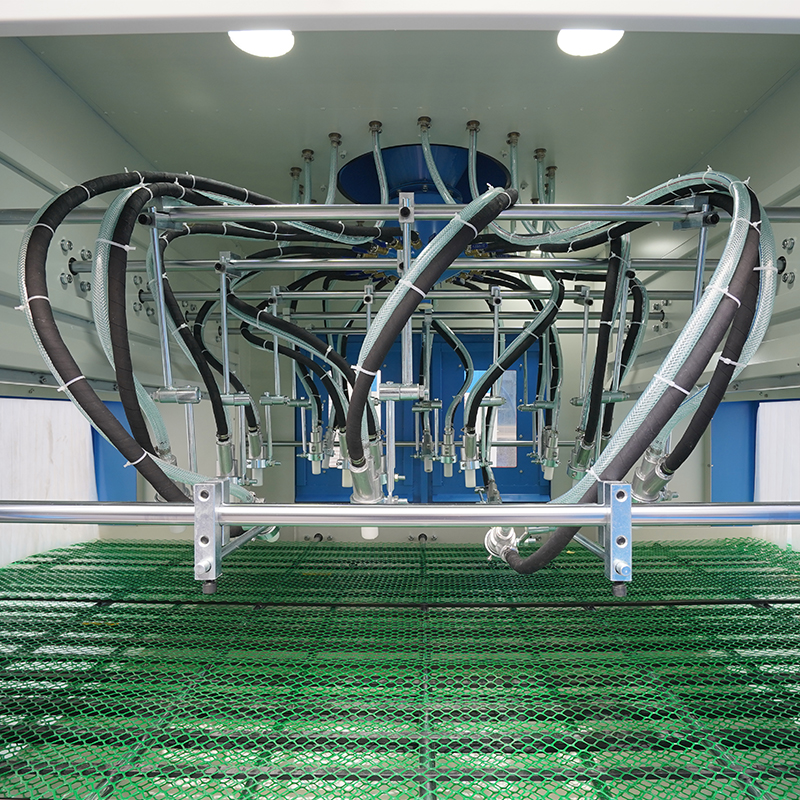

In our pass through conveyor blasting machines, workparts are continuously presented to an array of pre-positioned guns, the certain quantity of suction-blast guns are bracketed to sweep parts in linear motion synchronized with continuous movement of the belt. As the parts are conveyed in and out of the blast chamber on an adjustable-speed rubber or steel mesh belt.

Automatic conveyor sandblasting machine features

• The speed of conveyor belt is controlled by variable frequency, whose flexibility ensure the optimal finishing result.

• The swinging speed and angle, and distance between the blasting gun and parts can be adjusted to meet different needs.

• Using advanced PLC control system achieves high automation and stability, low failure rate.


• A dust removing system thoroughly collects dust leaving a clear working view and ensures the recycling of pure abrasives.

• The automatic sand blasting machine can be equipped with many spray guns, 4pcs, 6pcs, 8pcs, etc, as customer required.

Automatic Conveyor Sandblaster Specifications
