Rotary Indexing Automated Sandblasting System

Rotating indexing spindle blast system is a type of automatic sandblaster that specially suitable for batch processing of cylindrical workparts. Kafan's range of automated blast systems develop based on customers to provide maximum flexibility, quality, reliability and peace of mind
  • KF-1512-8A

  • Kafan

Availability:
Quantity:

Rotary Indexing Blasting System, Automated Sandblasting System

This automated sandblasting system is configured with a large indexing table and fitted with multiple spindles inserted with workparts. The indexing table intermittently rotates to present the workparts in accurate position in front of the automatic blast guns, while each spindle rotates itself ensure all the surface to be covered.

Automated Sandblasting System


Rotary Indexing Automated Sandblasting System Features

  • The flexible blast gun group can be set for fixed or swinging blasting with adjustable speed and angle.

  • Built with the increased capacity afforded by multiple spindle options, the spindle quantity can be customized.

  • Allows multiple parts simultaneously that ensures uniformty and quality consistency.

  • Adaptable spindles can be configured to suit your workparts and processing requirements.

  • High automation task controlled by PLC system, guarantee the balanced uniform blasting effect, as well as safe production

  • The automatic blast system configured with an independent dust collector included with fan and cartridge filters, keeps the working chamber and clear and prevents air pollution.

automated blasting gunsBlasting Station
automated blasting system

Load & Unload Station

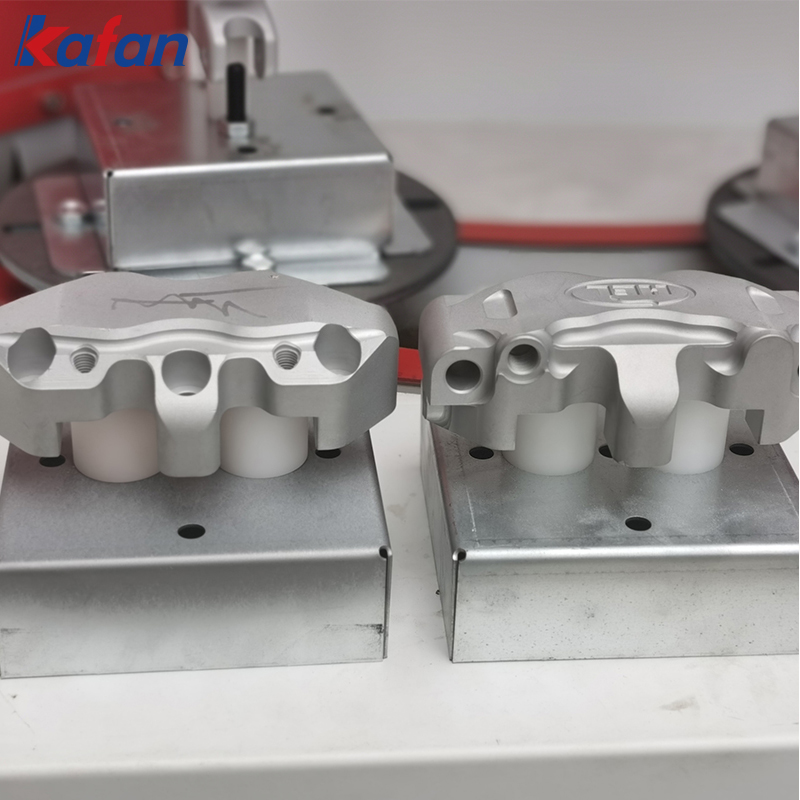

Custom-made Fixtures

Custo-made Fixture

pressure regulator

Pressure Regulates

sandblasting PLC control

PLC Touch Screen

sandblasting dust collector

Dust Collector



How Rotary Indexing Automated Sandblasting System Works

The highly efficient automated sandblasting machine designed with two stations, an opening one for loading and unloading and a closed one enable simultaneous for processing. which provides optimum blast coverage and reduces task times. Higher volumes, increased productivity and a drive to safe automated systems demands makes the system a rapid, repeatable and reliable equipment.


Rotary Indexing Automated Sandblasting System Specifications

Model: KF-1512-8A
Main Dimension 1500x1200x2000mm
Dust Collector Size 1200x1200x1700mm
Large Turntable Size Dia 900mm
Drive Motor Power 1.1kw
Qty of Small Turntables 8 sets
Drive Motor Power 0.75kw
Max. Size of Parts Allowed Dia 250mm x Height 350mm
Qty of Blast Guns 8 pcs
Blast Gun Nozzle Durable Boron Carbide
Power Supply 380V/220V As required
Separator Motor 5.5kw
Compressed Air Source 2-8bar (kg / cm2)


Rotary Indexing Automated Sandblasting System Specifications

It is suitable for mass production of discs, cylinders and polygonal shape parts, such as: rice cookers, non-stick pan, heating plates, baking pan (furnace), air cylinders castings, lampshade, wash pots, wine bottles, glass bottles, resin handicrafts, aluminum corridors, handicrafts, decorations and other products. Based on actual production needs, the automated sand blaster can be customized with specially turntables, different gun quantities, etc.

Automated Sandblasting System Specifications



1. How much time does it take to sandblasting for one piece cooking pan approximetly?

About the cycle time, it takes about 20-30 seconds to blast one pan according to the feedback from our clients who bought the automatic blast machine working with pans.


2. After we buy this automatic sandblaster, just giving power and loading the sand will be enough for using this machine?

Yeah, the offer includes all parts. Ready to use. After connecting with air source and power source. It can begin to work after loading the sand.


3. In this picture, the machine has a square cabinet which stands behind or beside it. what is it?

For the one standing behind or beside the machine, it is the catridge filter dust collector. The filter unit keeps the environment clean and dustless.


4. Which type of sand could be used in this machine?

The machine can work with various sands, size from mesh 16 to mesh 320, like glass beads, aluminum oxide, garnet, steel grit, corundum, etc.


5. Is this rotary indexing machine blasting just cover the cap or it sanding outer and inner side at the same time?

The machine can blast both outer and inner side of the pan at the same time, actually cover all surfaces of objects.. The Oscillating nozzles can be adjusted on a vertical or horizontal axis.


6. As we know it consumes sand. How much sand consuming in this process? How often should we change the whole sand?

The sand consumption is about 200kgs for 8 blasting guns each week if continuous work for 6-8 hours each day. The quantity changes as per the working time and different sand. There is no need to change the sand, just add some more when find out it is less.


7.Could we send you samples to sandblast in this automatic machine? We want to see the results.

It is good idea to send us a sample for testing in our automatic sandblasting machine. Please also send good sample for reference so that we can know what surface condition you required. If any possibility, welcome to visit our factory.
