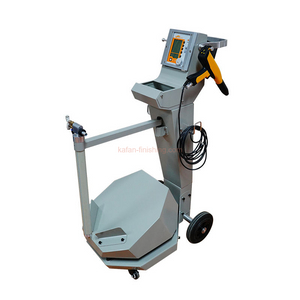

Small Scale Powder Coating Equipment

CL-191ST-H Small scale powder coating equipment with portable hopper is ideal for small business jobs or laboratory use. Advanced model provides excellent finish quality with less labor-saving and great powder-saving,

Quantity:
  • CL-191ST-H
  • Kafan

Small Scale Powder Coating Equipment

CL-191ST-H budget-saving powder coating equipment with 10 lbs fluidizing hopper is ideal for small business jobs or laboratory use. It also comes with a 100kv manual spray gun for powerful work, as well as a smart controller that combines all intelligent functions you need.

CL-191S series makes excellent quality finish for metal parts, such as wheels, frames, profiles, etc, especially perfect for coating complicated work-pieces with great corner penetration.

small powder coating equipment for sale


CL-191S Powder Coating Gun Controller Features

powder coating gun system

Full digital control panel, kv, amperage, powder feeding, atomizing, all data can be flexibily and precisely adjusted to get an optimal coating mode, avoids Faraday Cage and Orange Peel effect.

The accurate and subtle regulation of air supply offers more gentle, smooth and constant powder cloud, thus results in more uniform quality finish.

Three one-button coating programs stand for beginners, the flat mode is applicable for panels, the corner mode is for complex objects, while the re-coat mode lower the voltage to support repair coating.

Besides, the smart controller allows users create  their own programs for 20 kinds, stored with specific voltage, current powder supply and atomizing air, which can be easily recalled when needed. Thus each part will get its individual processing parameters.




CL-08 Powder Spray Gun Features

powder coating gun

100 kV spray gun maximizes powder charging capacity while complying with safety regulations, delivers highest transfer efficiency during long lasting use, most powders are attached to the metal parts with least  waste.

The lightweight and ergonomical design enables you to do jobs at ease. Robust struction and high quality materials provies a longer service life.

The nozzles are professionally designed for better atomization and minimize powder accumulation, including flat nozzles, round nozzles for different workparts, and extension nozzles to enhance penetration ability.

The back cover has remote control function to adjust powder feeding, and select coating programs, which facilitates operation



CL-191S Powder Coating Equipment Working

Electrical Data

MODELCOLO-191S-B
Gun Weight 500G
Rated output voltage 24VDC
Input voltage    -200KV
Maximum output current 180Ua(max)
Maximum output voltage0-100K(adjustable)


Pneumatic data

Maximum powder injection 600g/min
Polarity negative
Maximum input-air pressure 10kg/cm
Optimum input-air pressure6kg/cm
Optimum input-air pressure4kg/cm
Maximum water vapor content or compressed air1.4g/N m3
Maximum oil vapor content of compressed air   0.1ppm
Maximum compressed-air consumption13.2 m3/h
Temperature range in use-10 ºC+50 ºC
