KF-3515-16A
Kafan
Automatic Sandblasting Machine
Availability: | |
---|---|
Quantity: | |

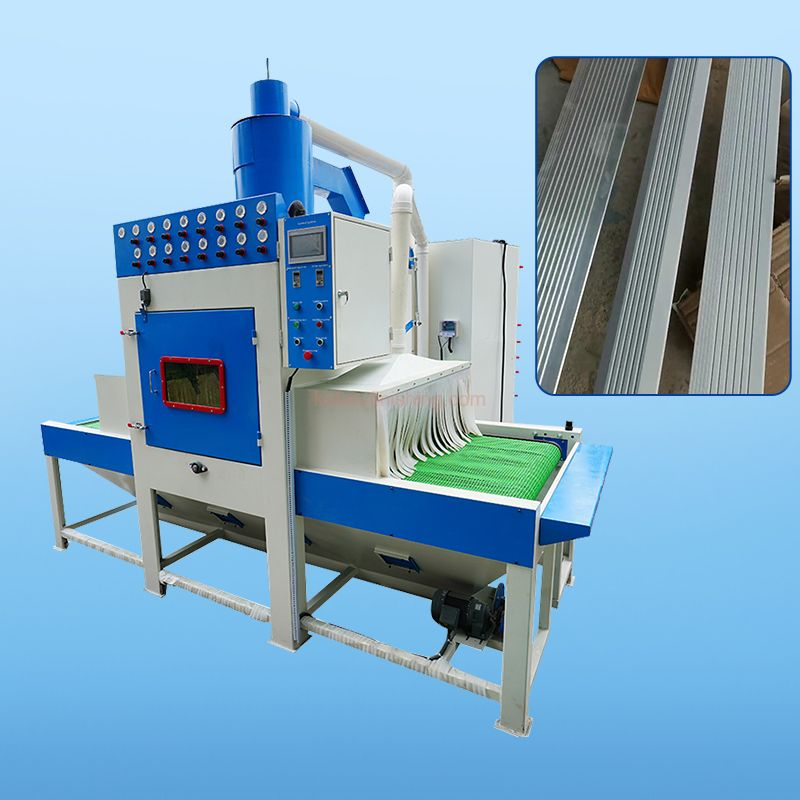

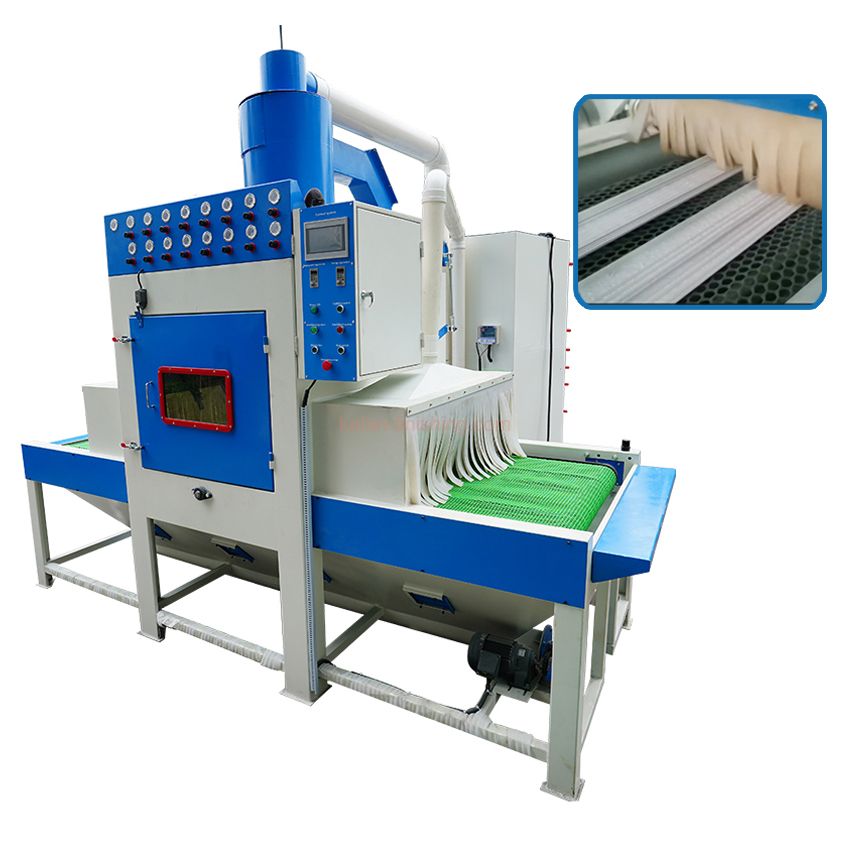

In the pass-through blast system, workparts are continuously presented to an array of pre-positioned guns for automatic blast processing, as the parts are conveyed in and out of the blast chamber on an adjustable-speed rubber or steel mesh belt.

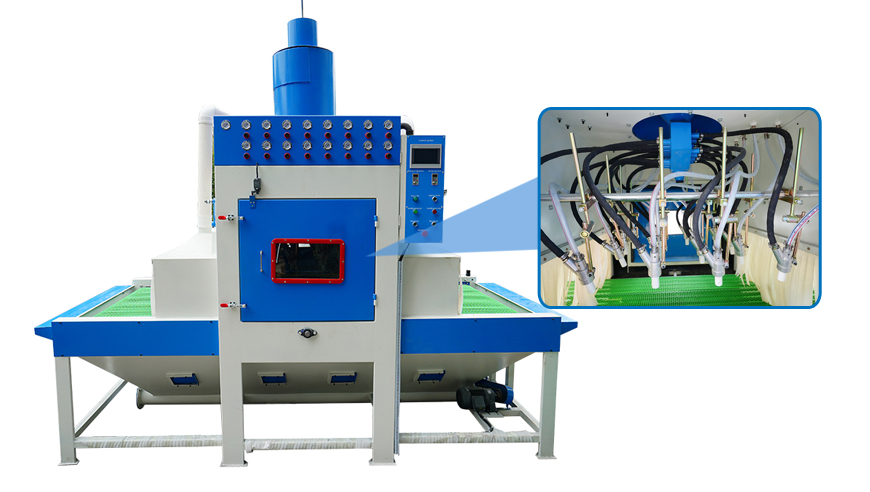

Up to 16 automatic-blast guns sweep parts in linear motion to cover more surface areas, thus achieves high productivity to reduced labor and time. and increases quality consistency, avoids the uneven blasting effect, chromatic aberration and quality problem.
The conveyor is frequency controlled whose speed can be steplessly regulated by the inverter within the range of 0 ~ 2m/min
The blasting system applies PLC control system with touching screen to adjust blasting parameters, realize high automation and great flexibility
Each blast gun is individual you can also choose full swinging or non-swinging for the gun. Nozzle is made of high-quality wear-resistant boron carbide. Nozzle diameter: Ф8mm.
Independent cartridge filter dust removal system with good effect of dust extraction and ventilation, ensures pure abrasives can be recycled.
Model | KF-3515-16A |
Working Size | 1200*1400*1100mm |
Pass Thru Size | 1000*350mm |
Overall Size | 3500*2500*1500mm |
Total Weight | 1500kgs |
Total Power | 7.8kw |
Dust Collector Fan Motor | 7.5kw |
Loading of Conveyor | 300kgs |
Conveyor Speed | 0-5m/min, adjustable |
Drive of Conveyor | 0.4kw speed adjustable |
Gun Clamp | Automatic swing, |
Gun QTY | 16pcs |
Abrasive Funnel | 4 units |
Compressed air Requirements | 35CFM/Per Gun 3-8bar(kg/cm2) |
Conveyor Speed | 0-5m/min, adjustable |
Body Material | T3mm-6mm Cold rolled steel plate |
In the pass-through blast system, workparts are continuously presented to an array of pre-positioned guns for automatic blast processing, as the parts are conveyed in and out of the blast chamber on an adjustable-speed rubber or steel mesh belt.
Up to 16 automatic-blast guns sweep parts in linear motion to cover more surface areas, thus achieves high productivity to reduced labor and time. and increases quality consistency, avoids the uneven blasting effect, chromatic aberration and quality problem.
The conveyor is frequency controlled whose speed can be steplessly regulated by the inverter within the range of 0 ~ 2m/min
The blasting system applies PLC control system with touching screen to adjust blasting parameters, realize high automation and great flexibility
Each blast gun is individual you can also choose full swinging or non-swinging for the gun. Nozzle is made of high-quality wear-resistant boron carbide. Nozzle diameter: Ф8mm.
Independent cartridge filter dust removal system with good effect of dust extraction and ventilation, ensures pure abrasives can be recycled.
Model | KF-3515-16A |
Working Size | 1200*1400*1100mm |
Pass Thru Size | 1000*350mm |
Overall Size | 3500*2500*1500mm |
Total Weight | 1500kgs |
Total Power | 7.8kw |
Dust Collector Fan Motor | 7.5kw |
Loading of Conveyor | 300kgs |
Conveyor Speed | 0-5m/min, adjustable |
Drive of Conveyor | 0.4kw speed adjustable |
Gun Clamp | Automatic swing, |
Gun QTY | 16pcs |
Abrasive Funnel | 4 units |
Compressed air Requirements | 35CFM/Per Gun 3-8bar(kg/cm2) |
Conveyor Speed | 0-5m/min, adjustable |
Body Material | T3mm-6mm Cold rolled steel plate |
All sandblasting machines are made in house by rich experienced production team of Kafan, we can directly control the cost and quality.. To pursue best performance, each machine body is steel plate welded with powder coated surface, durable, wear-resistant and long lifespan, and the main components are imported, by all of which we ensure 1 year warranty period for any quality problem. For sea shipping, we will strictly packed in film and foam first, with wooden case outside to make sure it is safe and intact to your country.
Located in Hangzhou, China, we we own a manufacturing base of 3600 square meter, around 100 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc. As a fast growing company in supplying sandblasting equipment and mass finishing equipment, we devoted all ourselves to offering solution for any surface finishing problems.
Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
We offer service: Standard Production Models, Customized Design, Before-order Technical Support, Engineer Oversea Installing & Training, Free Sample Testing, 24 hour On-line Consulting, ODM, OEM.
All sandblasting machines are made in house by rich experienced production team of Kafan, we can directly control the cost and quality.. To pursue best performance, each machine body is steel plate welded with powder coated surface, durable, wear-resistant and long lifespan, and the main components are imported, by all of which we ensure 1 year warranty period for any quality problem. For sea shipping, we will strictly packed in film and foam first, with wooden case outside to make sure it is safe and intact to your country.
Located in Hangzhou, China, we we own a manufacturing base of 3600 square meter, around 100 employees and 24 sets production equipment, dividing into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc. As a fast growing company in supplying sandblasting equipment and mass finishing equipment, we devoted all ourselves to offering solution for any surface finishing problems.
Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
We offer service: Standard Production Models, Customized Design, Before-order Technical Support, Engineer Oversea Installing & Training, Free Sample Testing, 24 hour On-line Consulting, ODM, OEM.
