KF-1212A-4A
Kafan

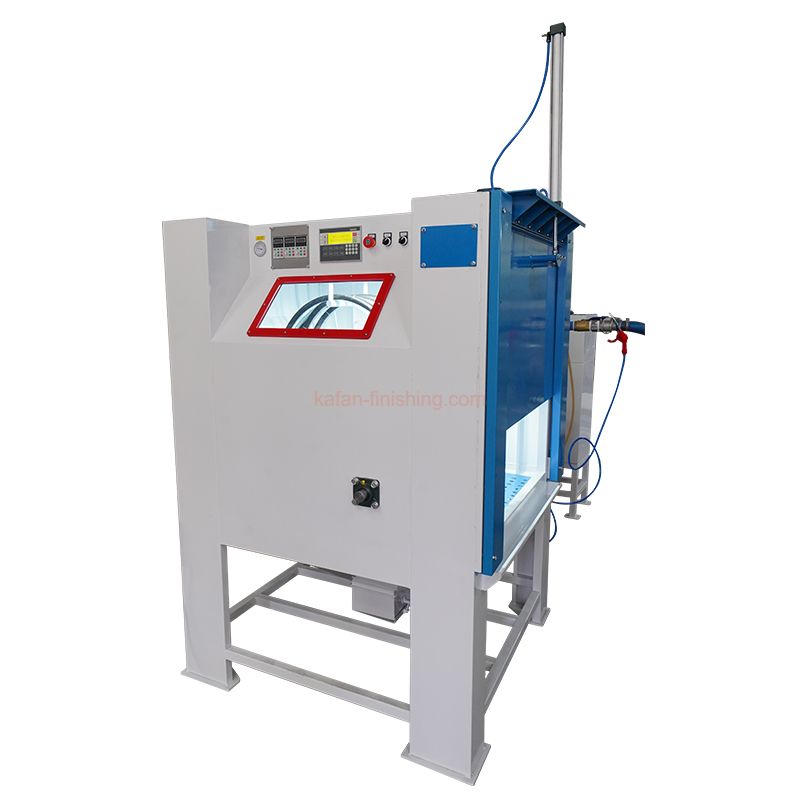

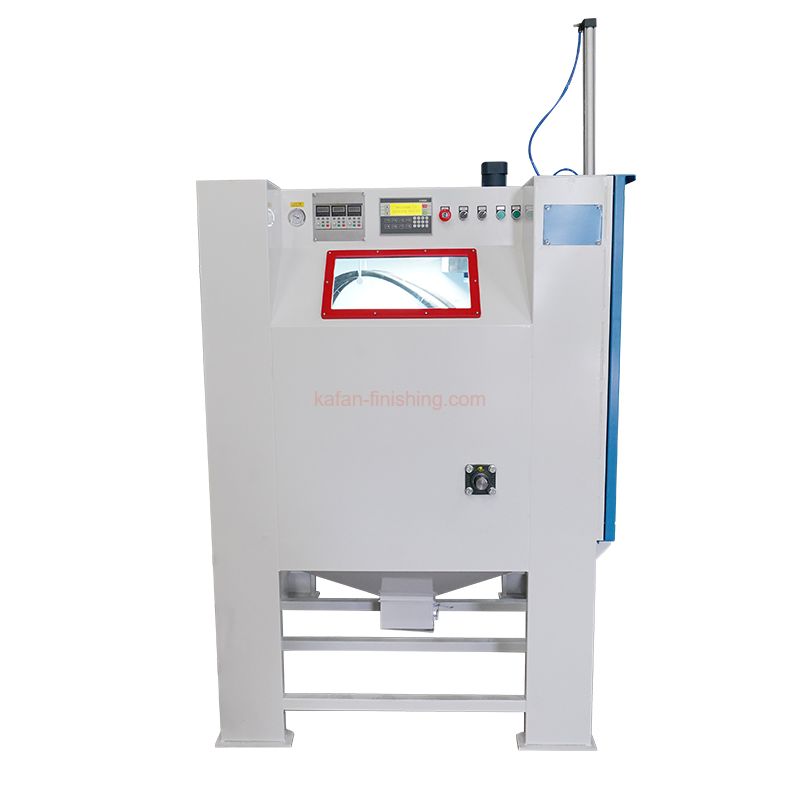

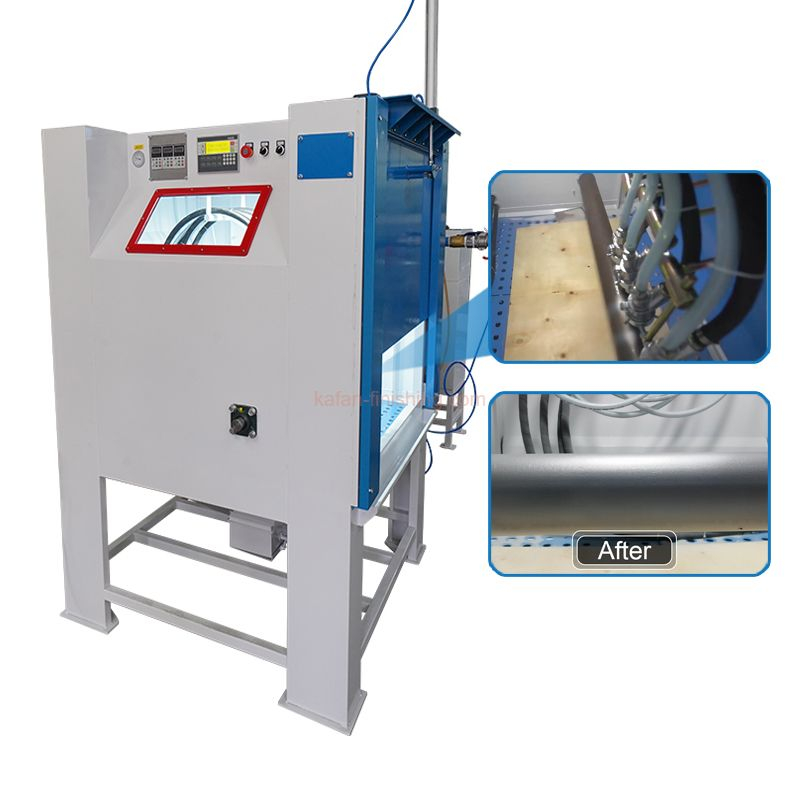

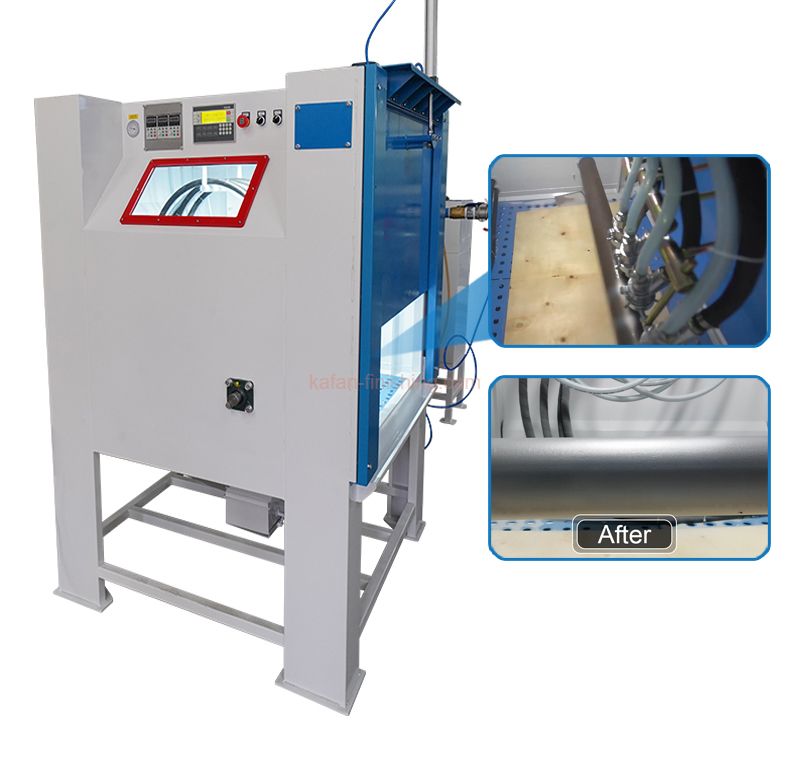

This sandblasting cabinet designed with 4 pcs auto blast guns and special fixtures in order to automatically abrasive blasting pipe shaped workparts. As a group of auto guns horizontally moving and blasting, the pipe shaped parts rolling automatically at the same time, thus overall surfaces can be cleaned thoroughly and evenly.

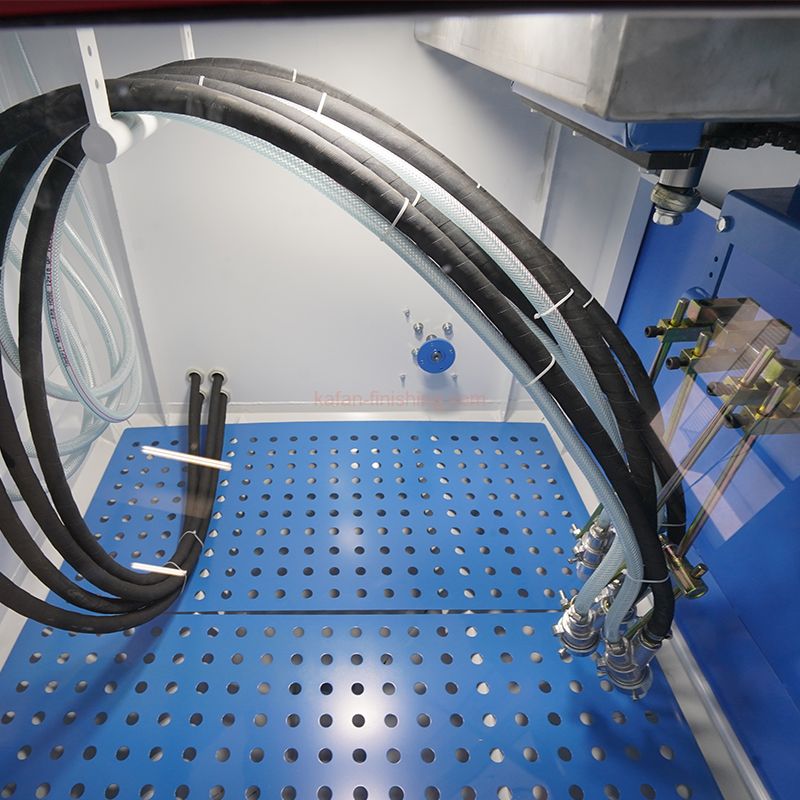

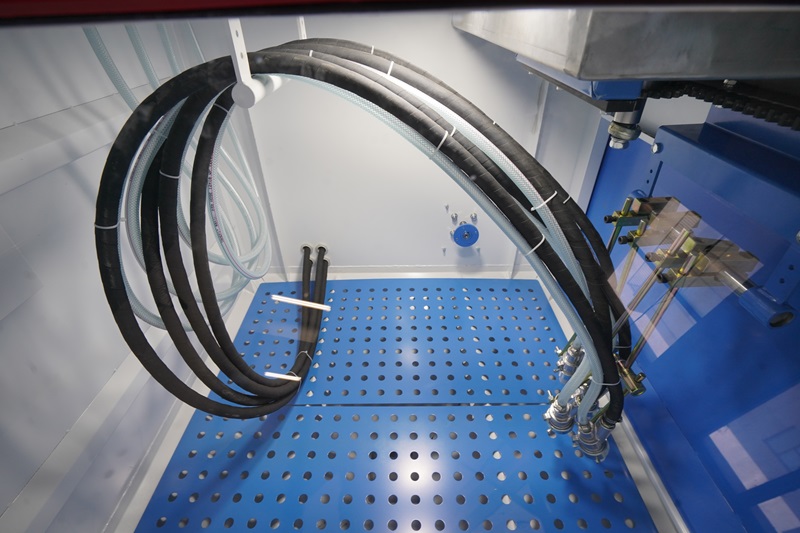

Automatic Blast Guns
Configured with 4pcs of automatic blast guns, the automatic blast guns can be adjusted for fixed blasting or moveable blasting.
The work of each blast gun is individually controlled via PLC. You can choose the optimal setting to meet your surface finishing needs.
The blast gun nozzle is made of highly durable boron carbide nozzle for longterm use.

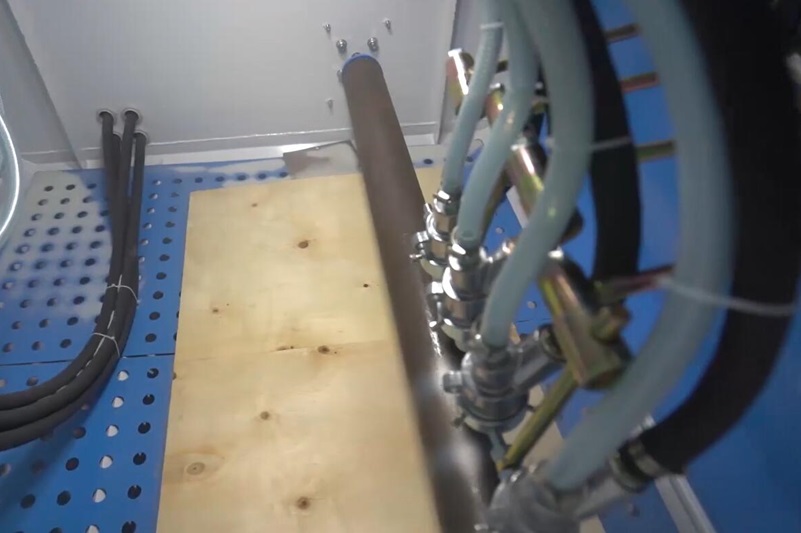

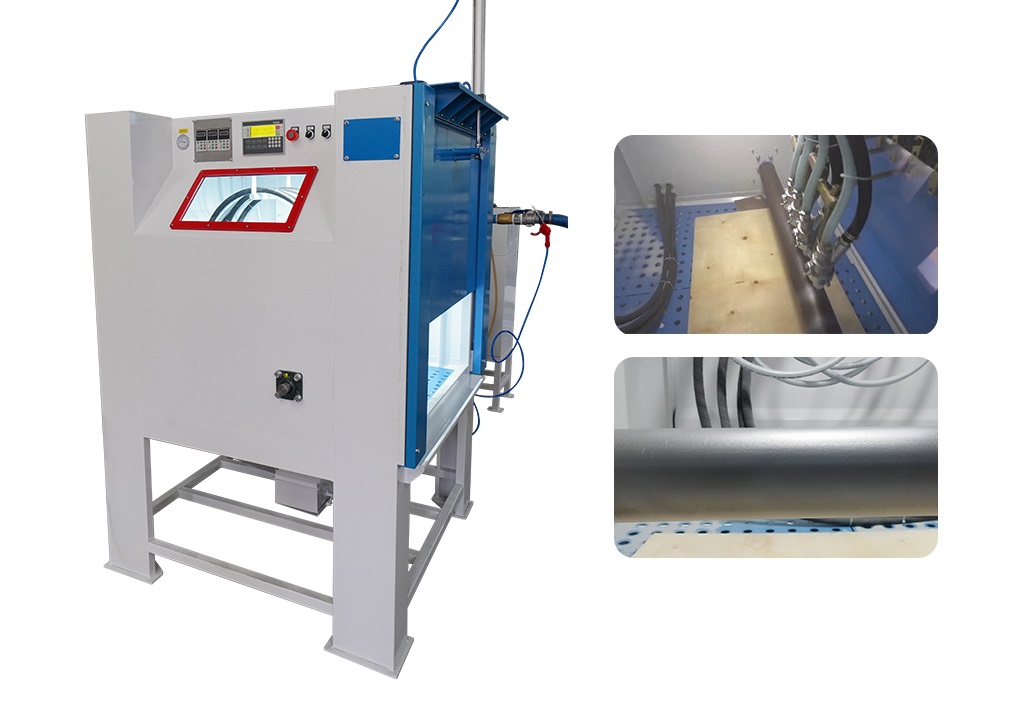

Customized Fixture for Workparts
The automatic sandblast cabinet is special designed with fixtures for fixing roller shaped objects, such as steel pipes, mainfolds,

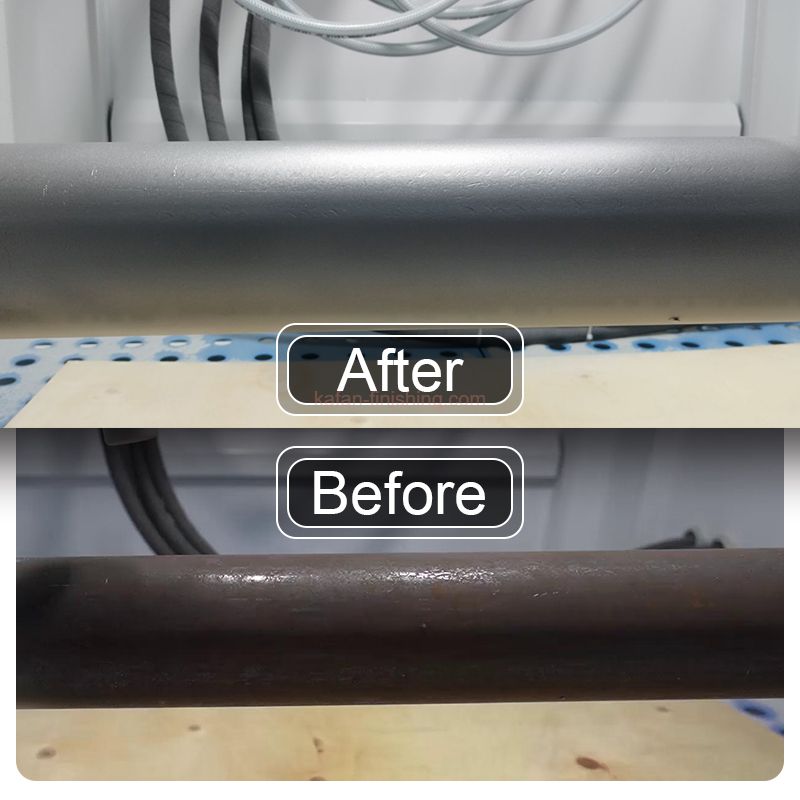

The fixture enables the workparts rolling, while the gun group blast and move, which ensures all surfaces covered with abrasive flow and get uniform finished.

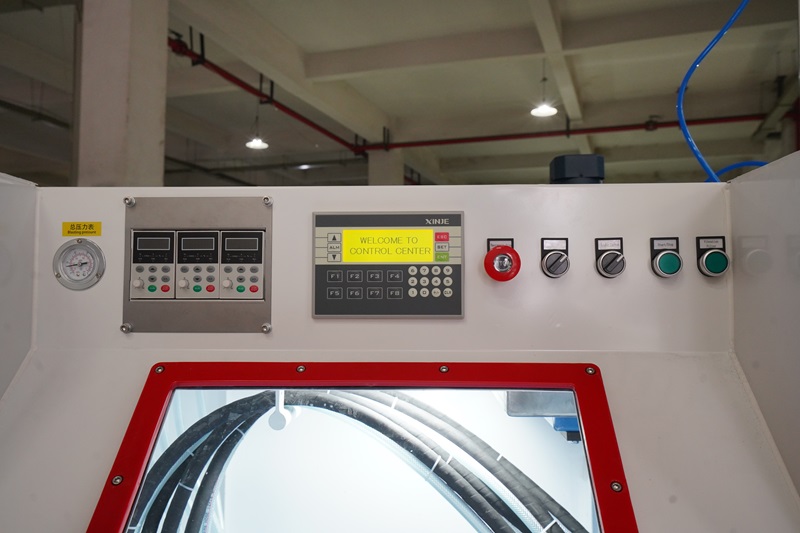

PLC Control
Through the PLC advanced system, you can easily control the work of each blasting gun, blasting time, turntable rotating, dust collector working. To achieve a fully automatic process, you can preset all working parameters on the panel, once the preset time has arrived, the machine will stop working immediately.

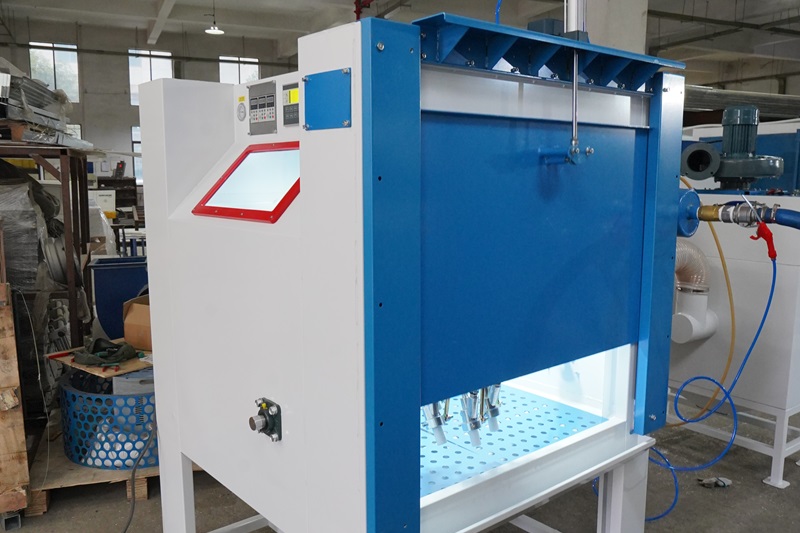

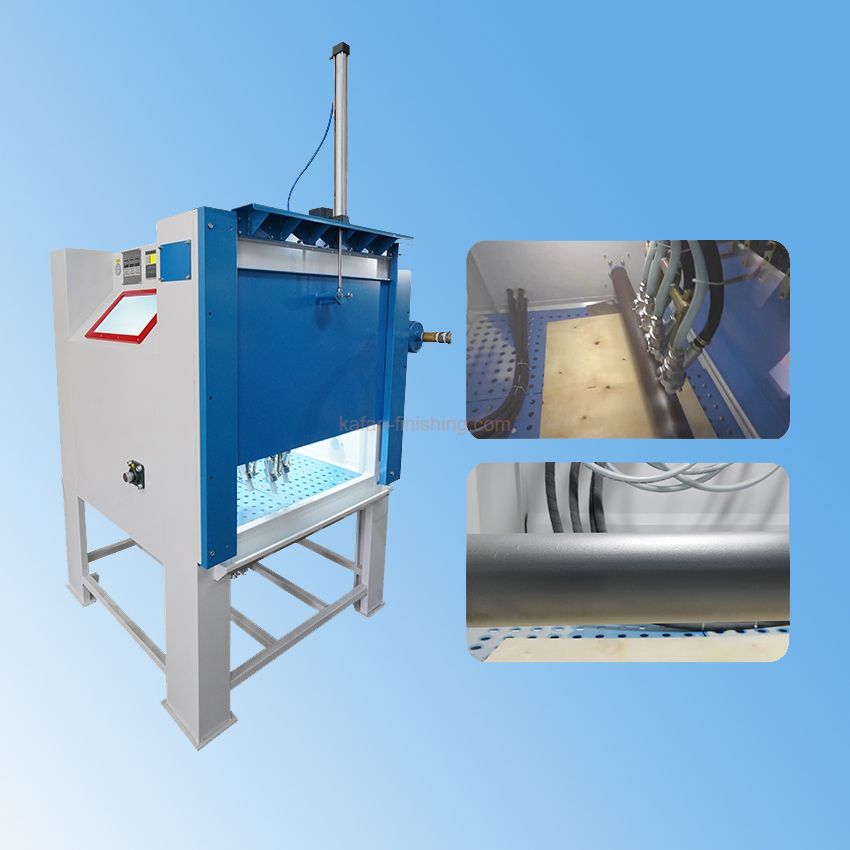

Automatic Door
The side door of the automatic sandblasting cabinet is controlled to be automatically open or closed, just press the button, you can achieve effortless operation.
Our technical team is always devoted to designing sandblasting system for your easy operation and efficient job.

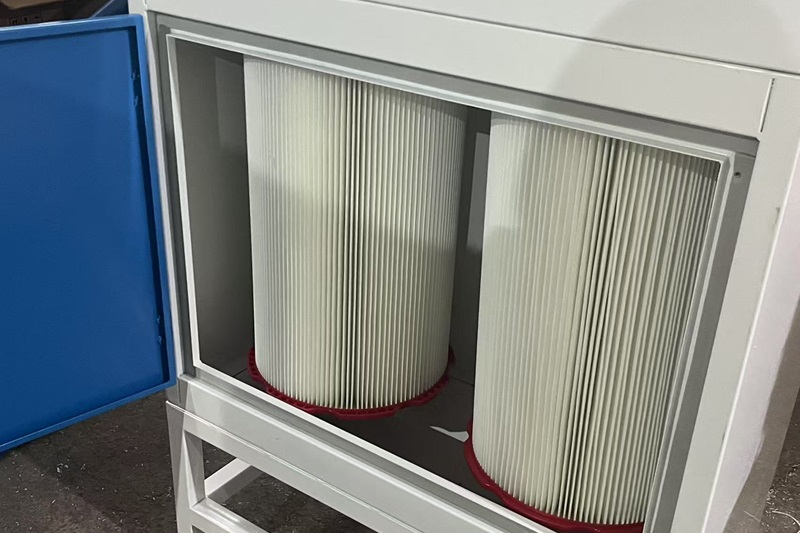

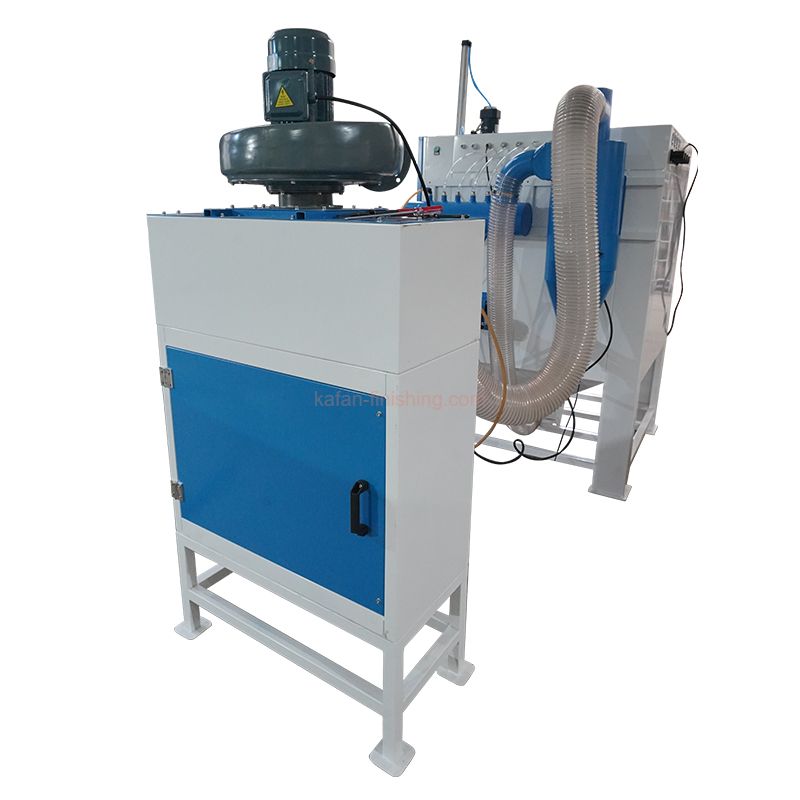

Filter Dust Collector
This sandblasting cabinet is configured with a dust removing system, including a cyclone separator, which is used to separate ultrafine abrasives from dust, increasing the recycling rate of pure abrasives, as well as 2 pieces of cartridge filter to absorb even micro dust particulates, which ensures vented airflow back to the workshop is dustfree.
Model: | KF-1212-4A |
Working chamber dimension | L1200mm * W1200mm * H850mm |
Power supply： | 380V, 50HZ (voltage can be customized as local) |
Machine light power： | 220V, LED* 2 |
Compressed air source： | 5-7bar(kg/㎡) |
Air flow： | 0.8-3m3/min dry and clean compressed air |
Separator air volume： | 8.5m3/min |
Dust removal method | Cartridge Filter Type |
Blasting Gun Qty | 4pcs automatic gun |
Blasting Nozzle | Boron Carbide |
This automatic blasting cabinet is developed for your Canadian customer, it is efficient for removing rust, stripping old paints or cleaning surfaces. With an automatic opening/shutting door, it is more safe and convenient. All operations you can set in the PLC for a fully automatic process.
1. Full automatic operation reduces labor cost while ensures efficiency and quality consistency, offering flexiblility with advanced PLC Control.
2. Each cabin style blast machine is configured with filter cartridge dust collector, effectively remove dust from the working chamber, ensure only the clean air is vented to the workshop.
3. Our popular automatic blast machines are widely needed as we sold for many years with proved quality and performance.
5. Allows customers posting their samples for testing with our automatic sandblasting machines, we have a variety of standard automatic sandblasters suits for different finishing applications.
6. Each blast system is built in-house at our 4000m^2 production base, for necessary quality-control and cost-control.
