KF-1212P
Kafan
| Availability: | |
|---|---|
Pressure blast cabinet utilizes a pressurized pot that directly pushes the abrasives to the gun then blasts onto the target surfaces. This method accelerates the abrasive conveying and creates powerful cutting force.
Pressure blasting cabinet is extremely supportable for tough cleaning jobs, like remove heavy burrs, sharp edges, thick oxide layers and old paintings that are difficult for suction blaster, moreover, large surface areas will be quickly cleaned with a pressure blast cabinet.

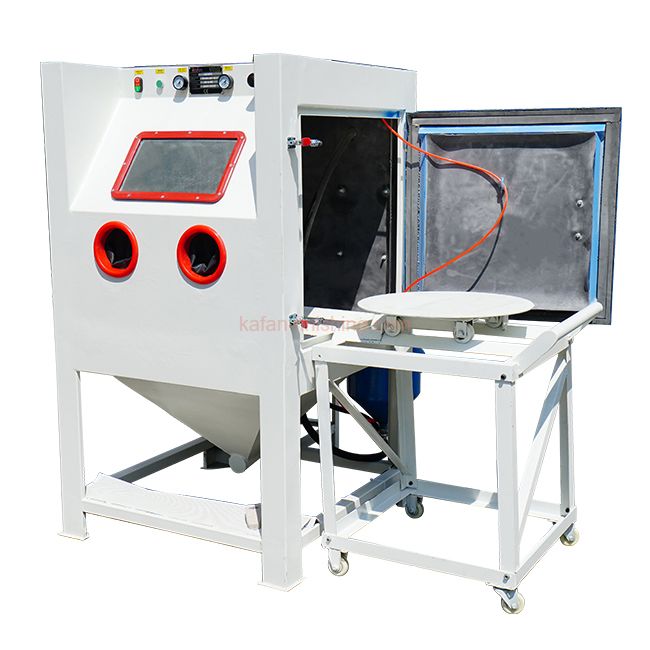

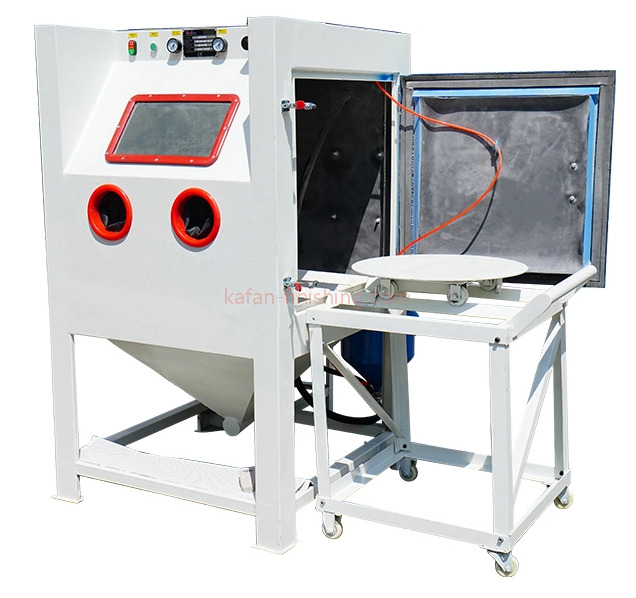

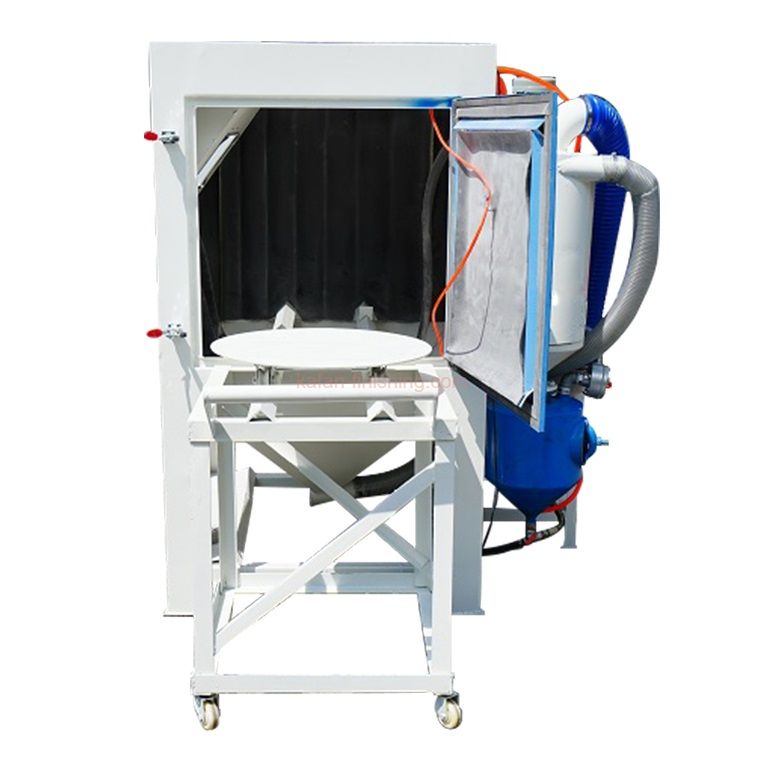

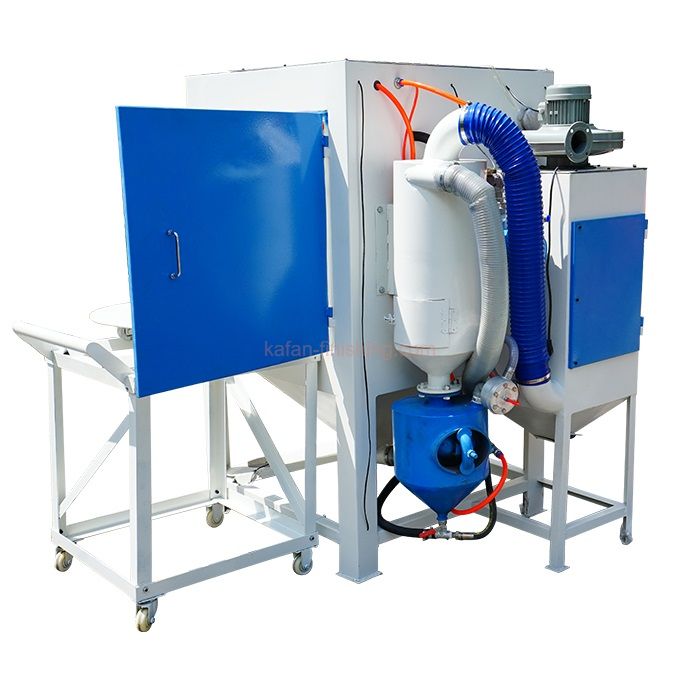

Pressure Blast Cabinet with Turntable & Cart
The pressure blast cabinet can be optionally configured with a turntable for easier operating big or heavy objects, a track extension and a cart used to move those objects in and out with minimal force.
Our innovative pressure blast cabinet are welded from 2mm coated steel plate, featuring durable and long life. Well-sealed enclosed cabinet without dust leakage or abrasive leakage, always keep the environment clean.

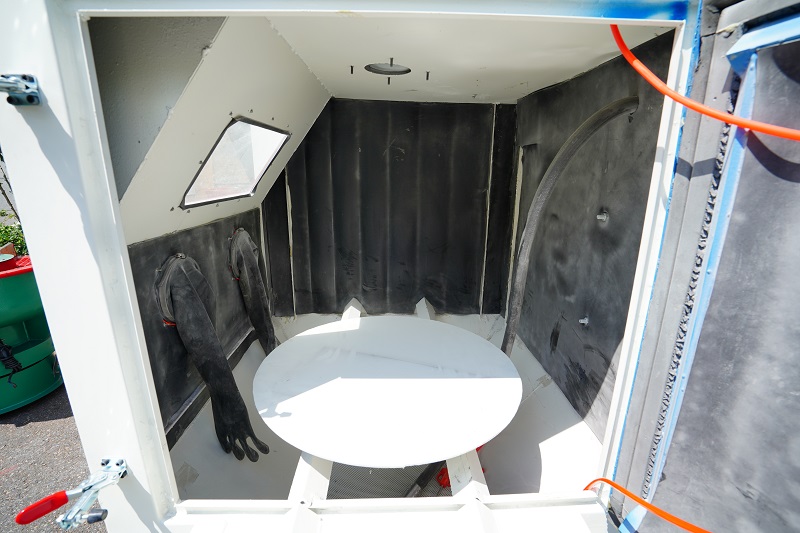

Blasting Cabin
Turntable and cart for easier operation when handling big & heavy objects.

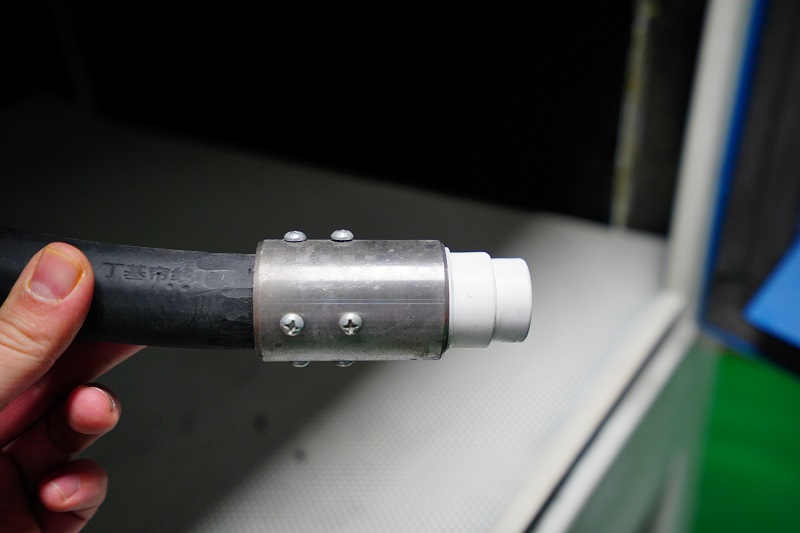

Sandblasting Gun
Consists of alloy holder with durable boron carbide nozzle

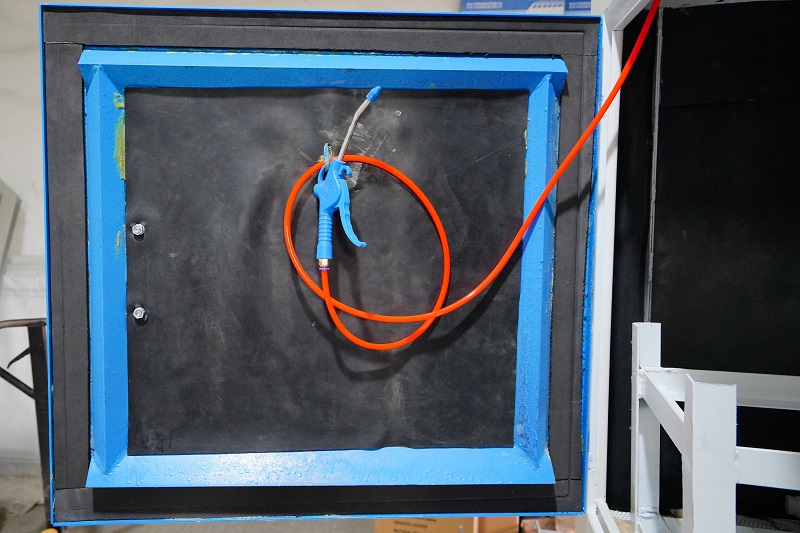

Air Blowing Gun
Using after blasting process - removal of surplus dust and blasting media.

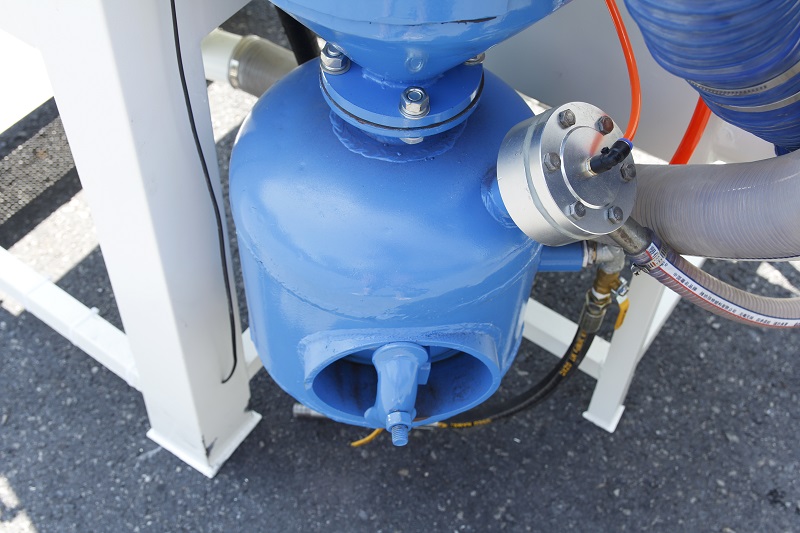

Pressure Pot
The advanced-developed pressure abrasive pot improves processing quality and reduce the compressed air consumption.

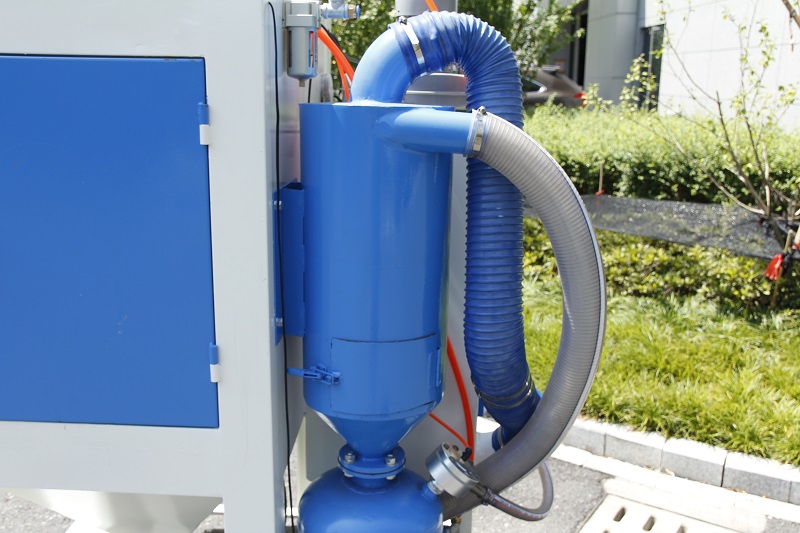

Cyclone Separator(optional)
Cyclone device is used to separate utra-fine abasives from dusts.

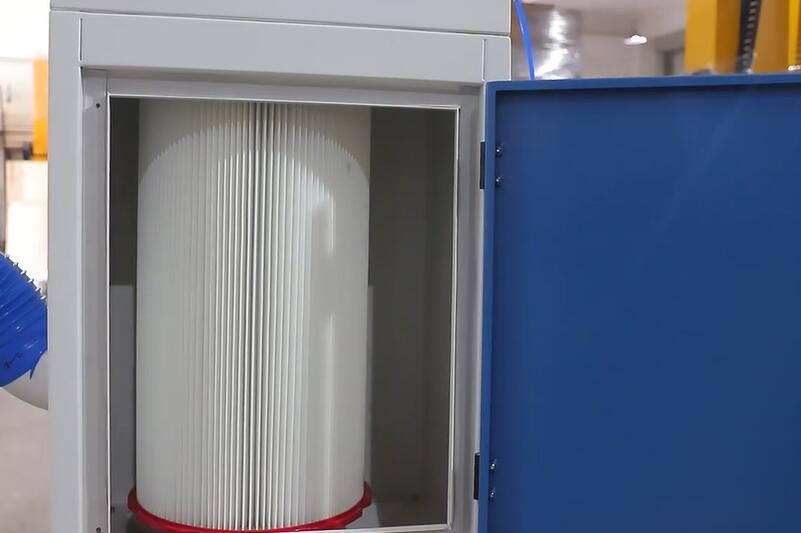

Filter Dust Collector
The dust collector effectively removes the dust away from the operator's window for increased visibility.
| Model | KF-1212P |
| Working Chamber Size | L1200*W1200*H800mm |
| Overall Size | L1650*W1200*H2100mm |
| Max.Loading | 100-120kgs |
| Dust Collector Size | L430*W430*H1600mm |
| Pressure Tank | Diameter350mm, height450mm |
| Pressure Gauge | 2 pieces. |
| Number of gun | 1 set with boron carbide nozzle |
| Machine Material | 2.0mm Cold-rolled Steel Plate Welded |
| Voltage | made as local. |
| Dust Collector motor | 0.55kw |
| Lighting | 18w fluorescent, 1pcs |
| Air source requirement:: | pressure 5-8bar (kg / square meter) |
| Model | Working Cabinet Size | Loading Capacity |
| KF-9080P | L900*W800*H800mm | 80-100kgs |
| KF-1010P | L1000*W1000*H800mm | 80-100kgs |
| KF-1212P | L1200*W1200*H800mm | 100-120kgs |
