650L Vibratory Bowl Finishing Machine, Mass Finishing Equipment

The Vibratory finishing machine is capable of using a wide variety of medias and compounds to attain the desired finish, such as rust-removing, descaling, polishing, deburring, chamferring, etc. 650L capacoty allows batch processing of bigger workparts in high efficiency and superior effect.
Availability:
Quantity:
  • KF-650A
  • Kafan

650L Vibratory Bowl Finishing Machine, Mass Finishing Equipment

Round bowl type vibratory finishing machine are the most widely used finishing systems for continuous and batch parts finishing. Its tumbling action removes unwanted material from whether hard substrates or delicate parts, ideal for almost any size and shape part. Such treatments will not destroy the original shape and accuracy but improve a more smooth, bright and precise surface.

vibratory bowl finishing machine

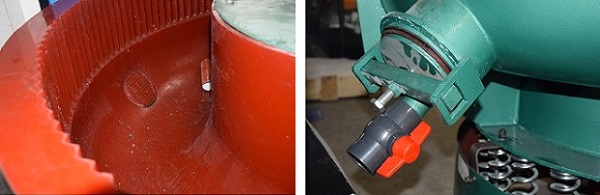

Vibratory Bowl Finishing Machine Features

Standard Configurations

1. Get thorough processing thanks to the high-performance 3 phase vibration motor.

2. Round bowl design allows random inspection at any time during vibrating

3. Polyurethane lining of the inner wall reduces the collision between parts and media.

4. Comes with an unloading chute for medias after processing

5. Heavy-duty and durable base, stress-relieved bowl and heavy-loaded spring.

vibratory finishing system

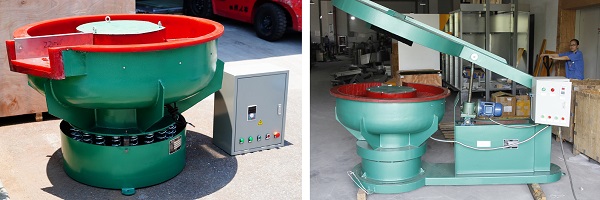

Optional Custom Configurations

1. Separator section for automatic separating of parts and media.

2. Electric control cabinet to achieve vibrating speed and amplitude adjustable.

3. Sound lid for the bowl keeps a friendly working environment.

MLF00391 - 副本


Why choose vibratory finishing machine?

Vibratory finishing is an economical and simple mass finishing solution with outstanding results The tumbling actions between parts and medias overcome the difficulty to touch awkward corners a overall and even finish.

Vibratory finishing tends to produce a smooth finish because the media essentially laps the parts. Since the load is moving as a unit, very fragile parts are quite safe in the vibrator. There is no tearing action or unequal forces that tend to bend and distort parts.

Vibratory bowl tumblers is a more popular option than barrel tumblers for most applications. This is mainly because of the vibratory finishing process is more compatible with automation, which can reduce labor costs and save time.



Vibratory Bowl Finishing Machine Models and Specifications

Model

Capacity

Motor Power

Speed

Amplitude

Rubber

Machine Weight

Size

kw

(r/min)

(mm)

lining(mm)

kg

L*W*H(mm)

KF-40(A)

40

0.55

1450

0.8-3

6-12

50

600*500*600

KF-60(A)

60

0.75-1.1

1450

0.8-3

6-12

100

700*640*700

KF-80(A)

80

1.1

1450

0.8-3

6-12

110

840*640*740

KF-95(A)

95

1.1

1450

0.8-3

6-12

120

860*800*750

KF-150(A)

150

2.2-3.0

1450

0.8-4

6-15

240

1150*1050*900

KF-250(A)

150

3

1450

0.8-6

6-20

280

1150*1100*900

KF-350(A)

350

5.5

1450

0.8-6

6-20

450

1450*1350*1050

KF-450(A)

450

5.5

1450

0.8-6

6-20

530

1550*1430*1050

KF-650(A)

650

7.5

1450

0.8-8

6-20

1250

1900*1850*1300

Vibratory Bowl with Separator

KF-150(AB)

150

2.2-3.0

1450

0.8-4

6-15

290

1150*1100*900

KF-250(AB)

250

3

1450

0.8-6

6-20

350

1150*1100*900

KF-350(AB)

350

5.5

1450

0.8-7

6-20

480

1450*1350*1050

KF-450(AB)

450

5.5

1450

0.8-7

6-20

580

1600*1430*1050

KF-650(AB)

650

7.5

1450

0.8-8

6-20

1250

2000*1850*1300

Stress-relief Vibratory Bowl with Separator

KF-150(B)

150

2.2-3.0

1450

0.8-4

6-15

320

1150*1100*900

KF-350(B)

350

5.5

1450

0.8-6

6-20

520

1500*1350*1050

KF-650(B)

650

7.5

1450

0.8-8

6-20

1250

1850*1800*1400


Application of Vibratory Finishing Machine

  • The vibratory bowl finishing machine can be used for a variety of applications: deburring, descaling, rounding of corners, cleaning, polishing, smoothing, general surface improvement.

  • For mass production of small to medium sized products, the polishing machine supports all kinds of materials: brass, aluminum, copper, iron, stainless steel, plastic, ceramic, stone, glass, wood and rubber products

  • Mainly used in bicycles parts, aerospace components, heat treated parts, aluminum die casting parts, zinc die casting parts, furniture hardware accessories, clothing hardware accessories, luggage hardware accessories, glasses accessories, watches and clocks accessories, electronic accessories, all kinds of jewelry and decoration products
